Exclusive Distributor & Partner of Erbessd
Wireless Vibration Monitoring Solutions
Erbessd Instruments® specializes in creating cutting-edge vibration monitoring equipment and condition monitoring sensors to help you capture thousands of measurements in a matter of seconds. That’s why Cornerstone Mechanical is an exclusive partner and distributor of a wide variety of Erbessd Instruments® products: to help you identify warning signs in your machinery quickly and accurately to avoid high maintenance costs down the line. Whether it’s movement that’s invisible to the naked eye or inconsistent temperatures, we’ll catch it before it turns into a larger problem and expensive downtime for your facility.
This partnership provides you with the best of both worlds: the latest wireless vibration monitoring technology combined with the expertise, analytical feedback and personalized service of a local distributor. With this partnership, you can be confident that you’re receiving the best hardware and talent available to keep your facility operating at peak performance.
We Offer:
- Vibration monitoring equipment
- Condition monitoring sensors
- Wireless vibration sensors
- Balancing machines
- And more

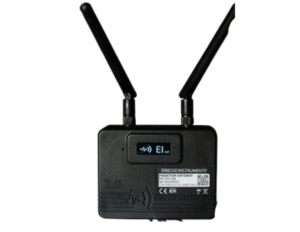

The Phantom Gateway 2.0 is a state-of-the-art communication system that centralizes all information about your wireless condition monitoring setup within one administration panel. Serving as the essential link between Erbessd Phantom sensors and the cloud, it features:
- Offline mode
- Modbus TCP/IP communication
- MQTT protocol
- OPC communication
- Mass configurations
- Simultaneous collection
- And more
The Phantom Expert Gen 3 Sensor is a cutting-edge wireless sensor designed with compact dimensions to be compatible with any rotating machine. Whether the mounted sensor is exposed to water jets, dust, high humidity or temperatures up to 185°F, its IP69-grade protection will allow it to continue collecting up to 65,000 measurements. Other features include:
- Long-lasting batteries
- Rigid, in-built mounting
- 10 kHz frequency range
- 12,800 FMax (32,768 samples per channel)
- Two varieties (high-range or high-sensitivity)
- And more
With the Phantom Vibration Monitoring System, you can predict machine failures and avoid future maintenance costs using the newest technology. These wireless sensors can measure various parameters like vibration, speed, temperature, current, amperage, pressure, flow and tank level. You can easily upload data into the cloud to monitor your equipment from anywhere on your smartphone, laptop or tablet. Other features include:
- Simple three-step installation
- Battery life of up to 100,000 measurements
- Distance ranges up to 100 meters
- Encrypted signal for data security
- And more
The Phantom IR-Thermographic Camera does what the naked eye can’t, detecting infrared radiation and inconsistent temperatures to identify potential faults in your machinery. No inspection windows are required, and there’s no need to open high-voltage cabinets for increased safety and peace of mind. Other features include:
- Can measure temperatures ranging from -40°F to 572°F
- Can operate in temperatures ranging from -40°F to 167°F
- 1-2 years of battery life
- 1 to 16 frames to capture
- Bluetooth compatibility
- Encrypted signal for data security
- And more

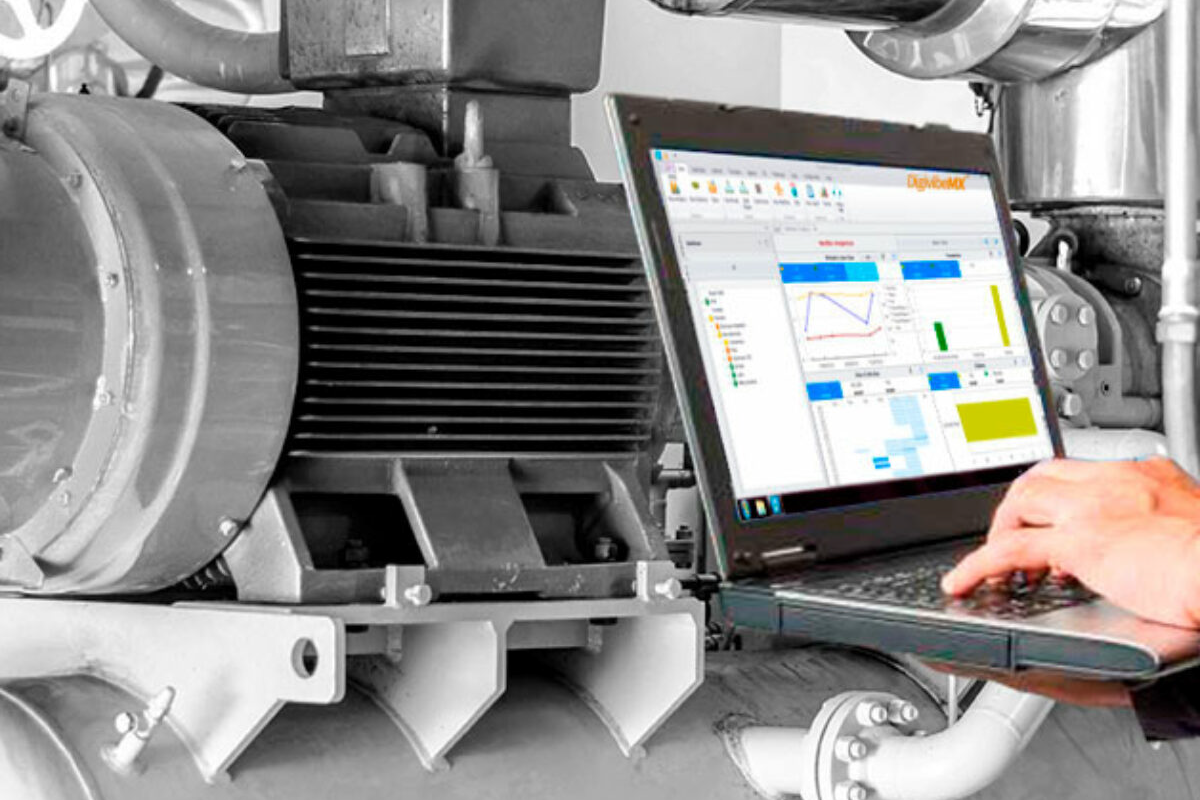

The DigiVibeMX® Vibration Analyzer & Data Collector is the most advanced vibration analyzer on the market, integrating advanced functions for vibration analysis and dynamic balancing displayed in an intuitive interface. It provides a convenient vibration analysis solution with easy connectivity, fast data collection times and:
- Generates an FFT of over 1 million lines of resolution
- Wide range of database compatibility
- Can perform ODS simulations
- Comprehensive iOS and Android applications
- 4 versions to choose from
- And more
Avoid installing expensive cables to conduct vibration analysis with the Erbessd Triaxial Wireless Accelerometer. The device is specially designed for universal compatibility, sending vibration data in real time with a maximum delay of 0.2 seconds. Other features include:
- Allows more than 1 million lines of resolution
- Can record for several hours
- Cloud-based route collection
- iOS and Windows compatibility
- And more
The WiSER 3x Portable Wireless Accelerometer is a WiFi-powered accelerometer and vibration analyzer that sends three-axis vibration data and one additional channel simultaneously to any data collector on the market. It’s pocket-sized, allowing you to conduct vibration analysis in the palm of your hand. Other features include:
- Captures acceleration, speed, displacement and envelope of acceleration in just one recording
- 10 kHz bandwidth
- 100% compatibility with DigiVibe®
- Saves data on mobile devices and can export to the cloud
- And more
DragonVision™ is a motion magnification technology that uses unique video analysis algorithms to track microscopic movements through video recordings. It compares every frame of the video, identifying trouble spots and providing a comprehensive analysis of your equipment’s movement. Other features include:
- Detects thousands of vibration points in a single video
- Waveform and FFT view of each point in your video
- Harmonics, sidebands, band filters, windowing options, signal markers and other vibration analysis tools
- Compatible with iOS and Windows
- And more
